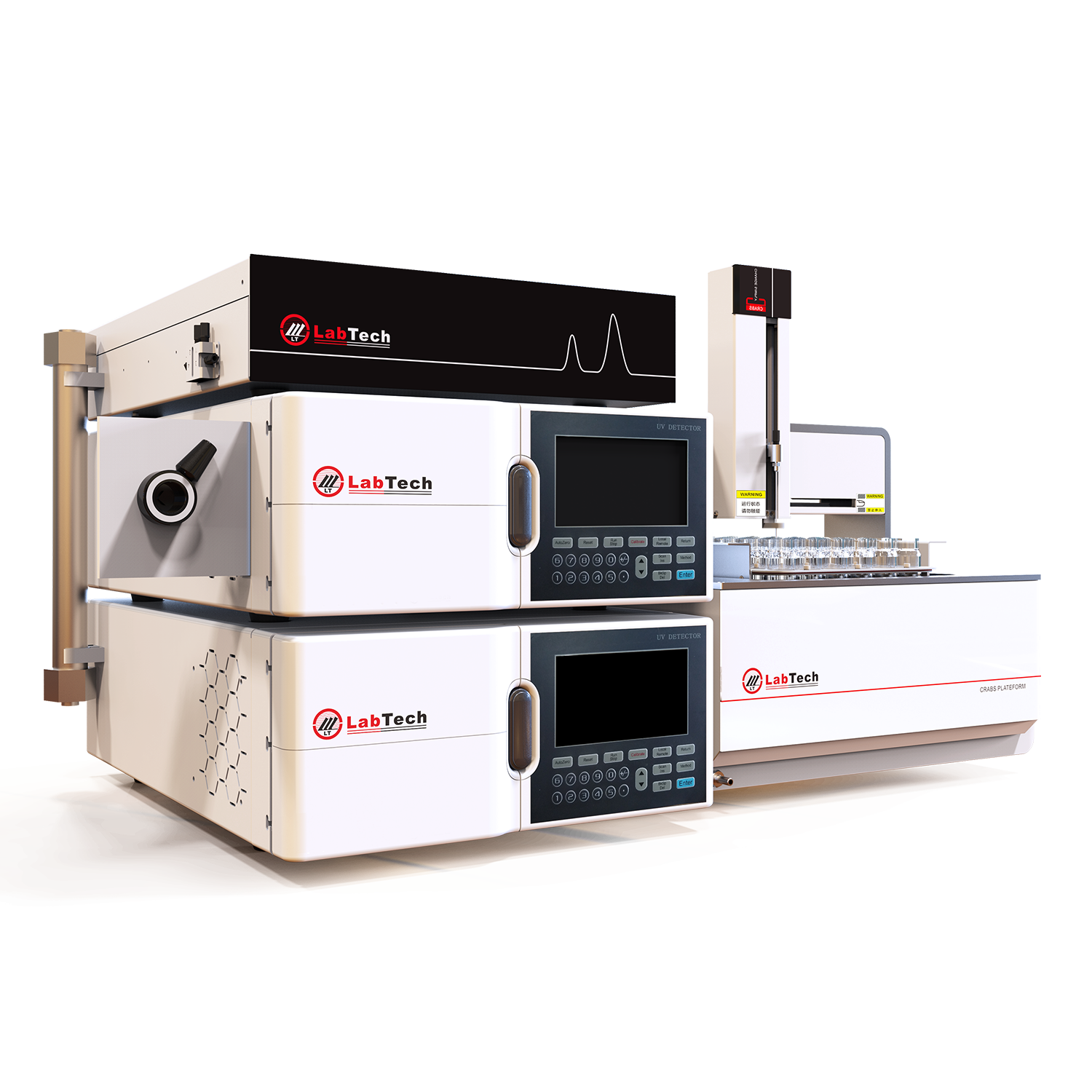

LabTech GPC600 UP Semi-Automatic GPC Cleanup

The GPC600 UP Semi-Automatic Gel Permeation Chromatography Cleanup System uses manual injection to load samples into the injection valve, followed by automatic purification through a high-efficiency stainless-steel cleanup column. It then automatically performs batch collection of target fractions. The collection vials are directly compatible with parallel concentrators and rotary evaporators, eliminating the need for sample transfer. The system provides stable operation, convenient handling, and is suitable for purification of samples in environmental, food, agricultural, and related fields.

Inquire Now

Key Features

The gel permeation cleanup system is based on the principle of gel permeation chromatography (GPC), separating and collecting complex samples according to molecular size. It effectively removes macromolecular matrices and small molecular interferences, improving sensitivity and accuracy of subsequent analyses, and extending the lifetime of analytical instruments.

Manual injection with automatic purification and target fraction collection.
Innovative stainless-steel cleanup column, pre-packed, eliminating manual column preparation, saving both time and solvent.
Precision 3D robotic arm collection platform, enabling continuous multi-position collection.
Sealed septum-piercing collection prevents solvent evaporation; automatic washing of inner/outer walls of collection needles ensures contamination-free operation.
High-precision dual-plunger pump for more stable flow and pressure delivery.
Variable wavelength UV detector, flexible and convenient for monitoring.
Multiple optional collection racks; directly compatible with parallel concentration systems.
Supports standard laboratory collection vials, concentration tubes, and rotary evaporator flasks.
Graphical user interface with authority management and data traceability functions, supporting multiple collection modes.
Modular design for flexible configuration; easily upgradable to the GPC1000 Automatic GPC Cleanup System.

Environmental

Purification of semi-volatile organic pollutants in soil, solid waste, and other environmental samples.

EPA Method 8082A (SW-846): Polychlorinated Biphenyls (PCBs) by Gas Chromatography

EPA Method 8270D (SW-846): Semivolatile Organic Compounds by Gas Chromatography/Mass Spectrometry (GC/MS)

EPA Method 8081B: Organochlorine Pesticides by Gas Chromatography

Food & Beverage

Purification of pesticide residues, veterinary drugs, additives, and nutrients in food, agricultural products, and grains/oils.

EPA Method 8081B: Organochlorine Pesticides by Gas Chromatography (GC) with Electron Capture Detector (ECD)

EPA Method 8270D (SW-846): Semivolatile Organic Compounds by Gas Chromatography/Mass Spectrometry (GC/MS)

Pharmaceutical & Medical

Purification of pesticide residues, mycotoxins, and other organic compounds in traditional Chinese medicine samples.

Chinese Pharmacopoeia 2020, Part IV: General Chapters 2341 (Pesticide Residue Determination) and 2351 (Mycotoxin Determination)

Geology & Mining

Purification of semi-volatile organic pollutants in soil, solid waste, and related samples.

EPA Method 8082A (SW-846): Polychlorinated Biphenyls (PCBs) by Gas Chromatography

EPA Method 8270D (SW-846): Semivolatile Organic Compounds by Gas Chromatography/Mass Spectrometry (GC/MS)

EPA Method 8081B: Organochlorine Pesticides by Gas Chromatography (GC) with Electron Capture Detector (ECD)

Forensics

Purification of drugs and organic pollutants in blood, urine, wastewater, and other biological/environmental samples.
