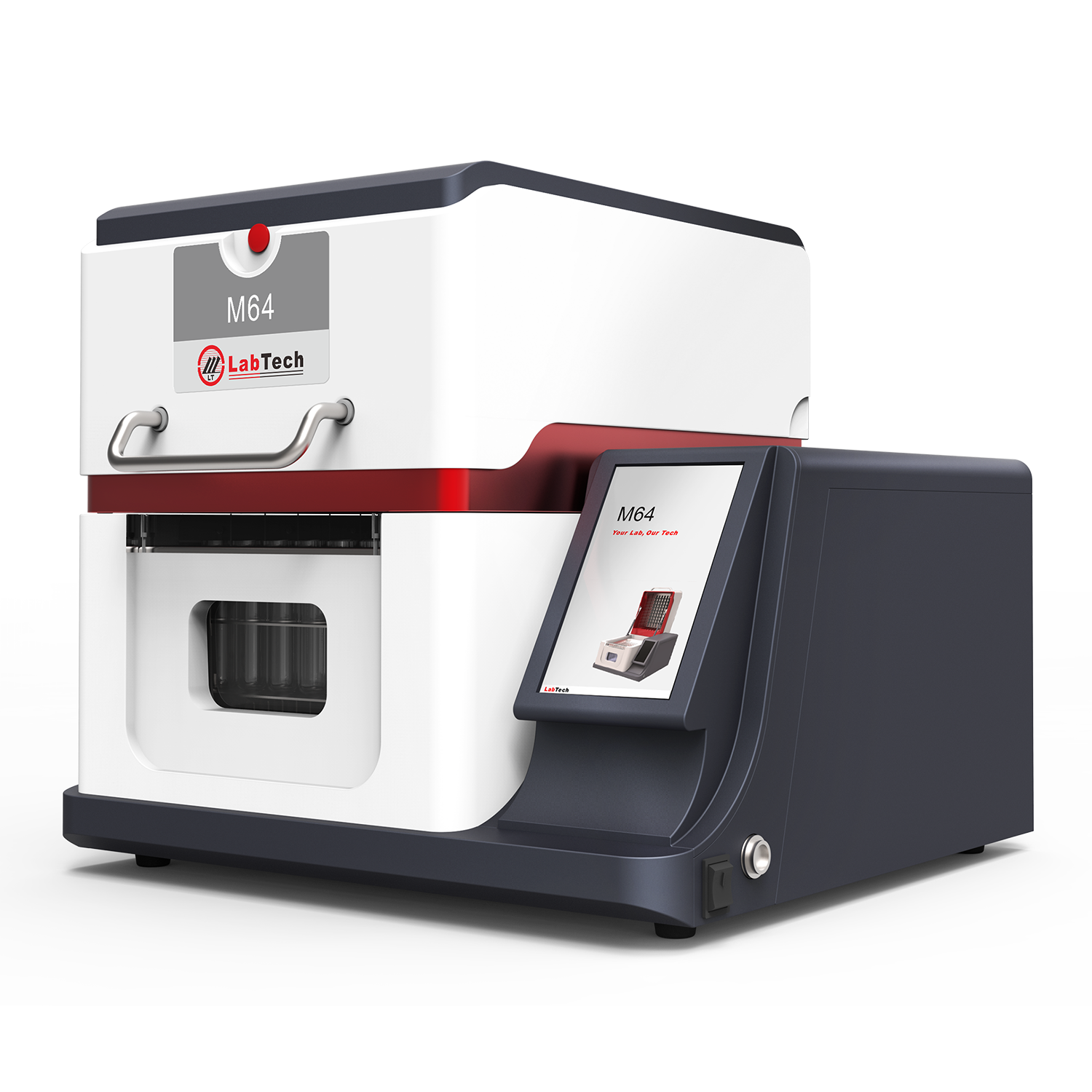

LabTech M64 Automatic High Throughput Parallel Concentrator-LabTech

Key Features

The M64 Automatic High Throughput Parallel Concentrator replaces manual methods with fully automated, unattended concentration, offering high efficiency and throughput.

Uses water bath heating and nitrogen blowdown for rapid concentration, with up to 64 channels operating in parallel.

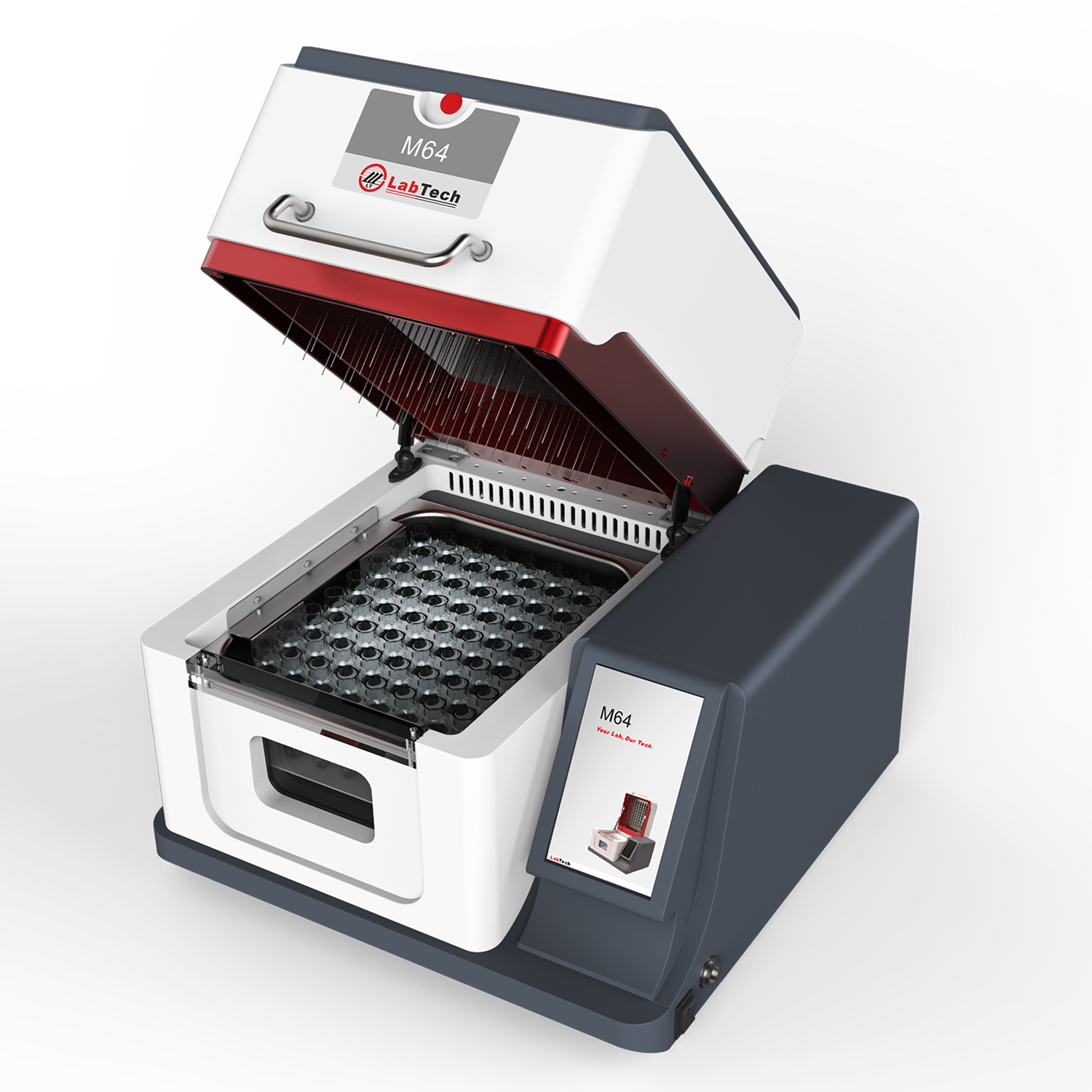

Nitrogen blowdown needles automatically descend with the liquid level, improving efficiency, reducing gas consumption, and ensuring user convenience.
Programmable nitrogen pressure automatically adjusts, unaffected by the number of active channels — precise, efficient, and practical.
Automatic control of concentration temperature and gas flow rate throughout the process for fast and reliable concentration.
Automatic lid lock during operation for protection; the system stops automatically when the lid is opened and resumes when closed.
Front observation window with internal lighting for visual monitoring of the process without opening the lid, avoiding unnecessary interruptions.
User-friendly interface with color touchscreen; methods can be edited during operation, and the original method is automatically saved.

Environmental

Used for enrichment and concentration of semi-volatile organic pollutants in soil, solid waste, atmosphere, and water samples in environmental monitoring.

EPA Method 533: Determination of Per- and Polyfluoroalkyl Substances (PFAS) in Drinking Water by Solid Phase Extraction and Liquid Chromatography/Tandem Mass Spectrometry (LC-MS/MS)

EPA Method 537.1: Determination of Selected Perfluorinated Alkyl Substances in Drinking Water by Solid Phase Extraction and Liquid Chromatography/Tandem Mass Spectrometry (LC/MS/MS)

EPA Method 8270D (SW-846): Semivolatile Organic Compounds by Gas Chromatography/Mass Spectrometry (GC/MS)

EPA Method 8082A (SW-846): Polychlorinated Biphenyls (PCBs) by Gas Chromatography

EPA Method 625.1: Base/Neutrals and Acids by GC/MS

EPA Method 3542A: Extraction of Semivolatile Analytes Collected Using Method 0010 (Modified Method 5 Sampling Train)

EPA Method TO-10A (Compendium of Methods for Toxic Organic Air Pollutants): Determination of Pesticides and Polychlorinated Biphenyls (PCBs) in Ambient Air Using Polyurethane Foam (PUF) Sampling and HPLC/UV Detection of Benzo[a]pyrene

Food & Beverage

Used for enrichment and concentration of pesticide residues, veterinary drug residues, and other organic compounds in food, grains, and agricultural products.

EPA Method 1699: Residue Analysis of Veterinary Drugs in Animal Tissue by LC-MS/MS

EPA Method 8081B: Organochlorine Pesticides by Gas Chromatography (GC) with Electron Capture Detector (ECD)

Pharmaceutical & Medical

Used for enrichment and concentration of pesticide residues, mycotoxins, and other organic compounds in traditional Chinese medicine samples.

Disease Control

Used for enrichment and concentration of pesticide residues, veterinary drug residues, and semi-volatile organic compounds in food, agricultural products, and drinking water samples.

EPA Method 1699: Residue Analysis of Veterinary Drugs in Animal Tissue by LC-MS/MS

Geology & Mining

Used for enrichment and concentration of semi-volatile organic pollutants in soil, solid waste, atmosphere, and water samples in environmental monitoring.

EPA Method 8270D (SW-846): Semivolatile Organic Compounds by Gas Chromatography/Mass Spectrometry (GC/MS)

EPA Method 8082A (SW-846): Polychlorinated Biphenyls (PCBs) by Gas Chromatography

EPA Method 3542A: Extraction of Semivolatile Analytes Collected Using Method 0010 (Modified Method 5 Sampling Train)

Forensics

Used for enrichment and concentration of drugs and organic pollutants in blood, urine, sewage, and other samples in criminal investigations and law enforcement.
